CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

Ask Lasest Price
Brand Name :	XF
Model Number :	1/2"-80"
Certification :	ISO9001 , PED AND AD2000 W0 ,MTC WITH EN 10204-3.1
Price :	1
Payment Terms :	L/C, T/T, D/P, Western Union
Supply Ability :	2000Tons One Month
Delivery Time :	30DAYS

Add to Cart

Product Details
Company Profile

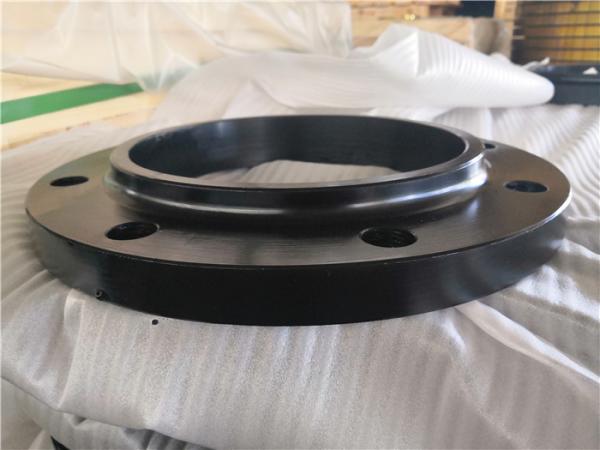

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS-2500LBS 1/2"-80"

SLIP ON FLANGE , WELDING NECK FLANGE , BLIND FLANGE , PLATE FLANGE

SOCKET WELDING FLANGE , THREADED(NPT) FLANGE , LAP JOINT FLANGE

ANSI B16.5 Flanges Dimensions

ASME B16.5 Class 150 Dimensions in MM

CARBON STEEL A105 FLANGE ANSI B16.5 ASME B16.47 150LBS - 2500LBS 1/2"-80"

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

DIMENSIONS ARE IN INCHES
Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 300 Flange Dimensions, ASME B16.5 Class 300 Flange Dimensions in mm

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
1⁄2	3.75	0.50	1.38	4	0.63	2.62	0.88	0.62	1.50	0.84	0.81	2.00
3⁄4	4.62	0.56	1.69	4	0.75	3.25	1.09	0.82	1.88	1.05	0.94	2.19
1	4.88	0.62	2.00	4	0.75	3.50	1.36	1.05	2.12	1.32	1.00	2.38
11⁄4	5.25	0.69	2.50	4	0.75	3.88	1.70	1.38	2.50	1.66	1.00	2.50
11⁄2	6.12	0.75	2.88	4	0.88	4.50	1.95	1.61	2.75	1.90	1.13	2.63
2	6.50	0.81	3.62	8	0.75	5.00	2.44	2.07	3.31	2.38	1.25	2.69
21⁄2	7.50	0.94	4.12	8	0.88	5.88	2.94	2.47	3.94	2.88	1.44	2.94
3	8.25	1.06	5.00	8	0.88	6.62	3.57	3.07	4.62	3.50	1.63	3.06
31⁄2	9.00	1.12	5.50	8	0.88	7.25	4.07	3.55	5.25	4.00	1.69	3.13
4	10.00	1.19	6.19	8	0.88	7.88	4.57	4.03	5.75	4.50	1.82	3.32
5	11.00	1.31	7.31	8	0.88	9.25	5.66	5.05	7.00	5.56	1.94	3.82
6	12.50	1.38	8.50	12	0.88	10.62	6.72	6.07	8.12	6.63	2.00	3.82
8	15.00	1.56	10.62	12	1.00	13.00	8.72	7.98	10.25	8.63	2.38	4.32
10	17.50	1.81	12.75	16	1.12	15.25	10.88	10.02	12.62	10.75	2.56	4.56
12	20.50	1.94	15.00	16	1.25	17.75	12.88	12.00	14.75	12.75	2.82	5.06
14	23.00	2.06	16.25	20	1.25	20.25	14.14	13.25	16.75	14.00	2.94	5.56
16	25.50	2.19	18.50	20	1.38	22.50	16.16	15.25	19.00	16.00	3.19	5.69
18	28.00	2.31	21.00	24	1.38	24.75	18.18	17.25	21.00	18.00	3.44	6.19
20	30.50	2.44	23.12	24	1.38	27.00	20.20	19.25	23.12	20.00	3.69	6.32
22	33.00	2.57	25.25	24	1.63	29.25	22.22	21.25	25.25	22.00	3.93	6.43
24	36.00	2.69	27.62	24	1.63	32.00	24.25	23.25	27.62	24.00	4.13	6.56

* For flanges type 21 the outside hub diameter approximately corresponds to the outside pipe diameter.
Note : The p/t rating from ASME B16.5 apply only for flange type 05, 11, 12, 13 and 21 having nominal sizes up to and including DN 600. The p/t rating of all other flanges shall be agreed between the manufacturer and the purchaser.

ANSI B16.5 Class 400 Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.5	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.00	1.38	6.19	8	1.00	7.88	4.57	5.75	4.50	2.00	3.50	*
5	11.00	1.50	7.31	8	1.00	9.25	5.66	7.00	5.56	2.12	4.00	*
6	12.50	1.62	8.50	12	1.00	10.62	6.72	8.12	6.63	2.25	4.06	*
8	15.00	1.88	10.62	12	1.12	13.00	8.72	10.25	8.63	2.69	4.62	*
10	17.50	2.12	12.75	16	1.25	15.25	10.88	12.62	10.75	2.88	4.88	*
12	20.50	2.25	15.00	16	1.38	17.75	12.88	14.75	12.75	3.12	5.38	*
14	23.00	2.38	16.25	20	1.38	20.25	14.14	16.75	14.00	3.31	5.88	*
16	25.50	2.50	18.50	20	1.50	22.50	16.16	19.00	16.00	3.69	6.00	*
18	28.00	2.62	21.00	24	1.50	24.75	18.18	21.00	18.00	3.88	6.50	*
20	30.50	2.75	23.12	24	1.62	27.00	20.20	23.12	20.00	4.00	6.62	*
22	33.00	2.88	25.25	24	1.75	29.25	22.22	25.25	22.00	4.25	6.75	*
24	36.00	3.00	27.25	24	1.88	32.00	24.25	27.62	24.00	4.50	6.88	*

Bolt hole diameter 1/8" larger than bolt diameter

ANSI B16.5 Class 600 Flange Dimensions, ASME B16.5 Class 600 Blind Flange Dimensions

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	3.75	0.56	1.38	4	0.63	2.62	0.88	1.50	0.84	0.88	2.06	*
3⁄4	4.62	0.62	1.69	4	0.75	3.25	1.09	1.88	1.05	1.00	2.25	*
1	4.88	0.69	2.00	4	0.75	3.50	1.36	2.12	1.32	1.06	2.44	*
11⁄4	5.25	0.81	2.50	4	0.75	3.88	1.70	2.50	1.66	1.12	2.62	*
11⁄2	6.12	0.88	2.88	4	0.88	4.50	1.95	2.75	1.90	1.25	2.75	*
2	6.50	1.00	3.62	8	0.75	5.00	2.44	3.31	2.38	1.44	2.88	*
21⁄2	7.50	1.12	4.12	8	0.88	5.88	2.94	3.94	2.88	1.62	3.12	*
3	8.25	1.25	5.00	8	0.88	6.62	3.57	4.62	3.50	1.81	3.25	*
31⁄2	9.00	1.38	5.50	8	1.00	7.25	4.07	5.25	4.00	1.94	3.38	*
4	10.75	1.50	6.19	8	1.00	8.50	4.57	6.00	4.50	2.12	4.00	*
5	13.00	1.75	7.31	8	1.12	10.50	5.66	7.44	5.56	2.38	4.50	*
6	14.00	1.88	8.50	12	1.12	11.50	6.72	8.75	6.63	2.62	4.62	*
8	16.50	2.19	10.62	12	1.25	13.75	8.72	10.75	8.63	3.00	5.25	*
10	20.00	2.50	12.75	16	1.38	17.00	10.88	13.50	10.75	3.38	6.00	*
12	22.00	2.62	15.00	20	1.38	19.25	12.88	15.75	12.75	3.62	6.12	*
14	23.75	2.75	16.25	20	1.50	20.75	14.14	17.00	14.00	3.69	6.50	*
16	27.00	3.00	18.50	20	1.63	23.75	16.16	19.50	16.00	4.19	7.00	*
18	29.25	3.25	21.00	20	1.75	25.75	18.18	21.50	18.00	4.62	7.25	*
20	32.00	3.50	23.00	24	1.75	28.50	20.20	24.00	20.00	5.00	7.50	*
22	34.25	3.75	25.25	24	1.88	30.63	22.22	26.25	22.00	5.25	7.75	*
24	37.00	4.00	27.25	24	2.00	33.00	24.25	28.25	24.00	5.50	8.00	*

ANSI B16.5 Class 900 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	* WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
3	9.50	1.50	5.00	8	1.00	7.50	3.57	*	5.00	3.50	2.12	4.00
4	11.50	1.75	6.19	8	1.25	9.25	4.57	*	6.25	4.50	2.75	4.50
5	13.75	2.00	7.31	8	1.38	11.00	5.66	*	7.50	5.56	3.12	5.00
6	15.00	2.19	8.50	12	1.25	12.50	6.72	*	9.25	6.63	3.38	5.50
8	18.50	2.50	10.63	12	1.50	15.50	8.72	*	11.75	8.63	4.00	6.38
10	21.50	2.75	12.75	16	1.50	18.50	10.88	*	14.50	10.75	4.25	7.25
12	24.00	3.12	15.00	20	1.50	21.00	12.88	*	16.50	12.75	4.63	7.88
14	25.25	3.38	16.25	20	1.63	22.00	14.14	*	17.75	14.00	5.12	8.38
16	27.75	3.50	18.50	20	1.75	24.25	16.16	*	20.00	16.00	5.25	8.50
18	31.00	4.00	21.00	20	2.00	27.00	18.18	*	22.25	18.00	6.00	9.00
20	33.75	4.25	23.00	20	2.13	29.50	20.20	*	24.50	20.00	6.25	9.75
24	41.00	5.50	27.25	20	2.63	35.50	24.25	*	29.50	24.00	8.00	11.50

ANSI B16.5 Class 1500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	So Bore ID (SB)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	4.75	0.88	1.38	4	0.88	3.25	0.88	1.50	0.84	1.25	2.38	*
3⁄4	5.12	1.00	1.69	4	0.88	3.50	1.09	1.75	1.05	1.38	2.75	*
1	5.88	1.12	2.00	4	1.00	4.00	1.36	2.06	1.32	1.62	2.88	*
11⁄4	6.25	1.12	2.50	4	1.00	4.38	1.70	2.50	1.66	1.62	2.88	*
11⁄2	7.00	1.25	2.88	4	1.12	4.88	1.95	2.75	1.90	1.75	3.25	*
2	8.50	1.50	3.63	8	1.00	6.50	2.44	4.12	2.38	2.25	4.00	*
21⁄2	9.62	1.62	4.13	8	1.12	7.50	2.94	4.88	2.88	2.50	4.12	*
3	10.50	1.88	5.00	8	1.25	8.00	-	5.25	3.50	-	4.62	*
4	12.25	2.12	6.19	8	1.38	9.50	-	6.38	4.50	-	4.88	*
5	14.75	2.88	7.31	8	1.63	11.50	-	7.75	5.56	-	6.12	*
6	15.50	3.25	8.50	12	1.50	12.50	-	9.00	6.63	-	6.75	*
8	19.00	3.62	10.63	12	1.75	15.50	-	11.50	8.63	-	8.38	*
10	23.00	4.25	12.75	12	2.00	19.00	-	14.50	10.75	-	10.00	*
12	26.50	4.88	15.00	16	2.12	22.50	-	17.75	12.75	-	11.12	*
14	29.50	5.25	16.25	16	2.38	25.00	-	19.50	14.00	-	11.75	*
16	32.50	5.75	18.50	16	2.63	27.75	-	21.75	16.00	-	12.25	*
18	36.00	6.38	21.00	16	2.88	30.50	-	23.50	18.00	-	12.88	*
20	38.75	7.00	23.00	16	3.12	32.75	-	25.25	20.00	-	14.00	*
24	46.00	8.00	27.25	16	3.63	39.00	-	30.00	24.00	-	16.00	*

ASME B16.5 Class 2500 Flange Dimenisons

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	Dia. Hub Base (HB)	Dia. Hub Top (HT)	SO LTH (SL)	WN LTH (WL)	* WN Bore ID (WB)
1⁄2	5.25	1.19	1.38	4	0.88	3.50	1.69	0.84	1.56	2.88	*
3⁄4	5.50	1.25	1.69	4	0.88	3.75	2.00	1.05	1.69	3.12	*
1	6.25	1.38	2.00	4	1.00	4.25	2.25	1.32	1.88	3.50	*
11⁄4	7.25	1.50	2.50	4	1.12	5.13	2.88	1.66	2.06	3.75	*
11⁄2	8.00	1.75	2.88	4	1.25	5.75	3.12	1.90	2.38	4.38	*
2	9.25	2.00	3.63	8	1.12	6.75	3.75	2.38	2.75	5.00	*
21⁄2	10.50	2.25	4.13	8	1.25	7.75	4.50	2.88	3.12	5.62	*
3	12.00	2.62	5.00	8	1.38	9.00	5.25	3.50	-	6.62	*
4	14.00	3.00	6.19	8	1.63	10.75	6.50	4.50	-	7.50	*
5	16.50	3.62	7.31	8	1.88	12.75	8.00	5.56	-	9.00	*
6	19.00	4.25	8.50	8	2.12	14.50	9.25	6.63	-	10.75	*
8	21.75	5.00	10.63	12	2.12	17.25	12.00	8.63	-	12.50	*
10	26.50	6.50	12.75	12	2.63	21.25	14.75	10.75	-	16.50	*
12	30.00	7.25	15.00	12	2.88	24.38	17.38	12.75	-	18.25	*
