JIS B2220 SOP 5K 10K 25K SS400 Yellow Color Plate Weld Flange

The flat face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.

Flat face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange.

Plate flange is different with slip on flange without neck for contact with fitting, it usually include JIS flange and DIN flange, In ANSI, ASME flange system, which have this kind of flange.

“JIS” Stands for Japanese Industrial Standard and are published by the Japanese Standards Association (JSA) which is the equivalent of ANSI in the United States. They are created and updated by the Committee of the Japanese Industrial Standards (JISC). Like JSA to ANSI, the JISC is similar to the American Society of Mechanical Engineers (ASME).

Japan Industrial Standard is yet another option for metric sizes. Provided in JIS5K, JIS10K, JIS15K, and JISK20K pressure classes, we can offer Slip On, Blind, and Weld Neck varieties in Raised Face or Flat Face configurations. These are typically made of 316/L or A105, but as usual, all alloys are available!

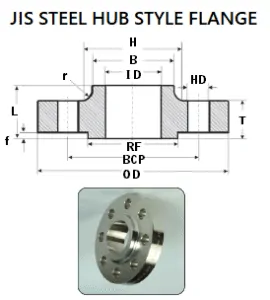

Much like DIN / metric flanges, the JIS flange specification offers a slightly wider variety of slip weld configurations for the purposes of space limitations and suitability for existing pipeline equipment. For instance, a customer can request a slip on with or without a hub as standard, or even a ring type flange, and all of this within the same B2220 specification.

JIS flanges are commonly found in exported pressure equipment and pipe assemblies from Japan. Many large ships and sea vessels which travel through international waters and service the Pacific rim will utilize equipment made to this standard, as parts and servicing for this specification are widely available.

• Common materials used are as follows :
  • Stainless steel,BrassSteel,Alloy Steel,Aluminum,Plastics,Titanium,Monels,Carbon steel,Alloy titanium etc.
  • Stainless Steel : ASTM A 182, A 240
  • Grade : F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
  • Carbon Steel :SS400, ASTM A 105, ASTM A 181
  • Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
  • Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
  • Copper Alloys : Copper, Brass & Gunmetal
  • Aluminium Alloys: A5052,A5083
  • Size : 1/8″ NB TO 48″NB.
  • Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

• Standard
  • ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • JIS: B2220
  • DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
  • B.S : BS4504 , BS4504, BS1560, BS10
  • And other flange series…
• Specification
