JIS B2220 FORGED FLANGE

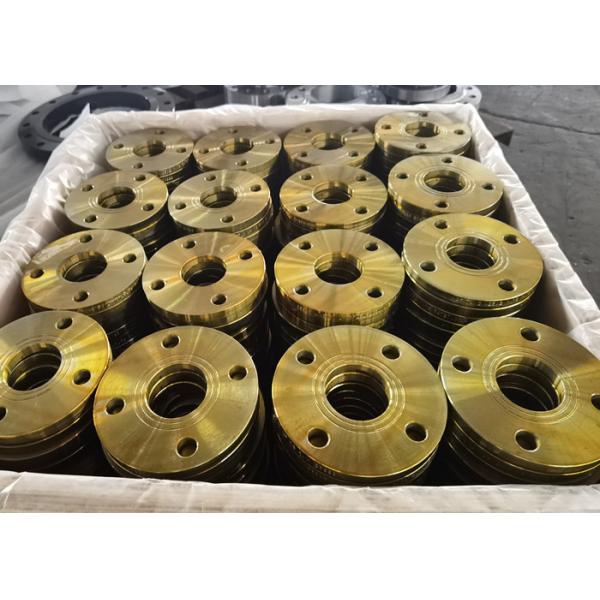

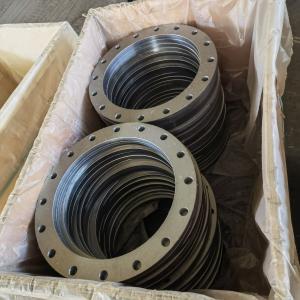

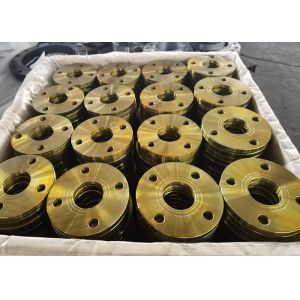

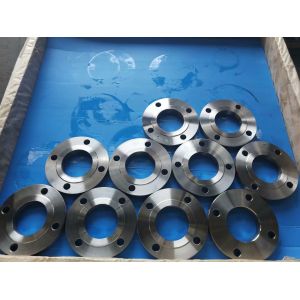

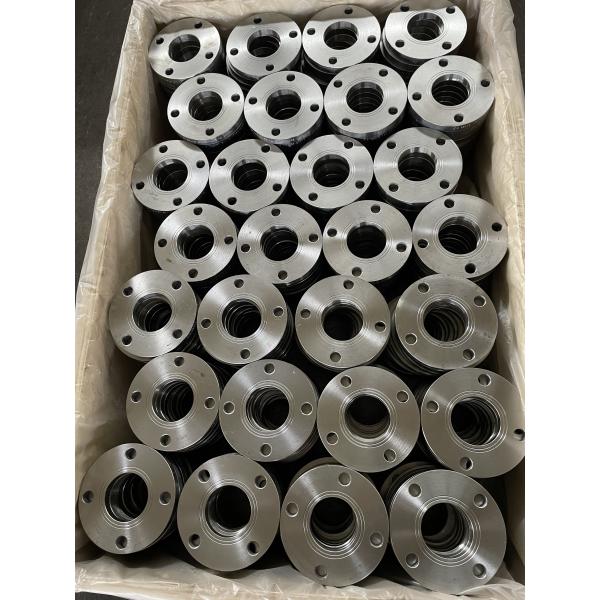

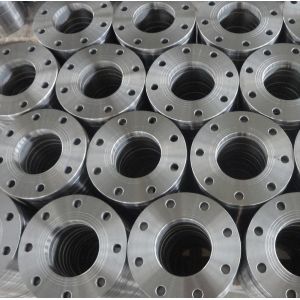

Jis B2220 Flange Slip On,Blind,Carbon Steel,Stainless Steel,5k,10k,16k,20k,Ss400

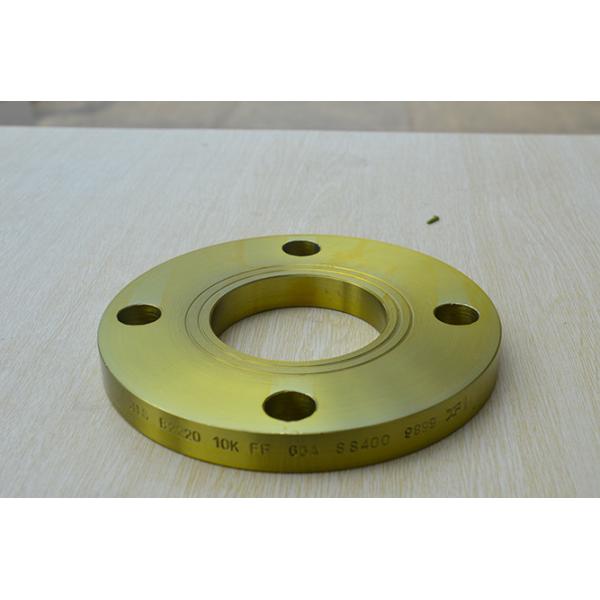

The flat face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.

Flat face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange.

Plate flange is different with slip on flange without neck for contact with fitting, it usually include JIS flange and DIN flange, In ANSI, ASME flange system, which have this kind of flange.

“JIS” Stands for Japanese Industrial Standard and are published by the Japanese Standards Association (JSA) which is the equivalent of ANSI in the United States. They are created and updated by the Committee of the Japanese Industrial Standards (JISC). Like JSA to ANSI, the JISC is similar to the American Society of Mechanical Engineers (ASME).

Japan Industrial Standard is yet another option for metric sizes. Provided in JIS5K, JIS10K, JIS15K, and JISK20K pressure classes, we can offer Slip On, Blind, and Weld Neck varieties in Raised Face or Flat Face configurations. These are typically made of 316/L or A105, but as usual, all alloys are available!

• Specification

COMPANY INFORMATION

XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. XINFENG has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.

XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

Established in 1989, HEBEI XINFENG HIGH PRESSURE FLANGE AND PIPE FITTING CO., LTD (XINFENG) specializes in the manufacture of flanges, butt weld pipe fittings in standard as well as special parts and forgings according to customer drawings.Located in Mengcun Hui Nationality Autonomous Region, known as the base for manufacture of elbows and pipe fittings in China, XINFENG enjoys a pleasant environment and convenient transportation, with Beijing and Tianjin city to the north and the Bohai Sea to the east.

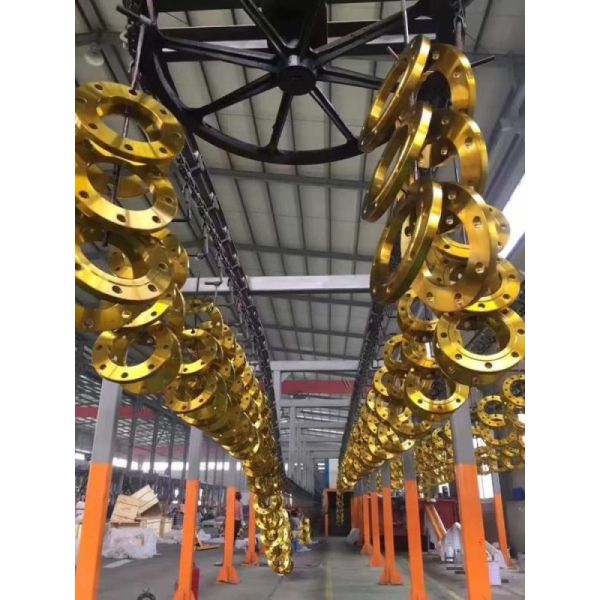

　　Covering an area of 120000 square meters, equipped with advanced production lines and inspection instruments, XINFENG now has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 14000 tons. Its main production equipment includes forging hammers, ring-rolling machine, lathes, drillers, pushing machine, presses, shot blasting machine etc. for the production of flanges, elbows, tees, reducers and caps at different size range. Materials available are carbon steel, stainless steel and alloy steel. XINFENG has a group of rich-experienced engineers and technical professionals, making it strong in technical force. Products are manufactured in accordance with international standards such as ANSI，DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. Being a ISO 9001 & PED 97/23/CE certified company ,XINFENG follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.

　　XINFENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversea markets, exported far to South Korea, Russia, countries and regions in Middle East, Southeast Asia, South America and West Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

　　With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.
